Application

• Installation in Drywall, Plaster, Masonry, Tile or any flush surface
• Economical and attractive access door for walls & ceilings

Product Features

• Formed door panel
• Concealed hinge
• 12″ x 12″ and smaller doors have bend tabs to aid in installation

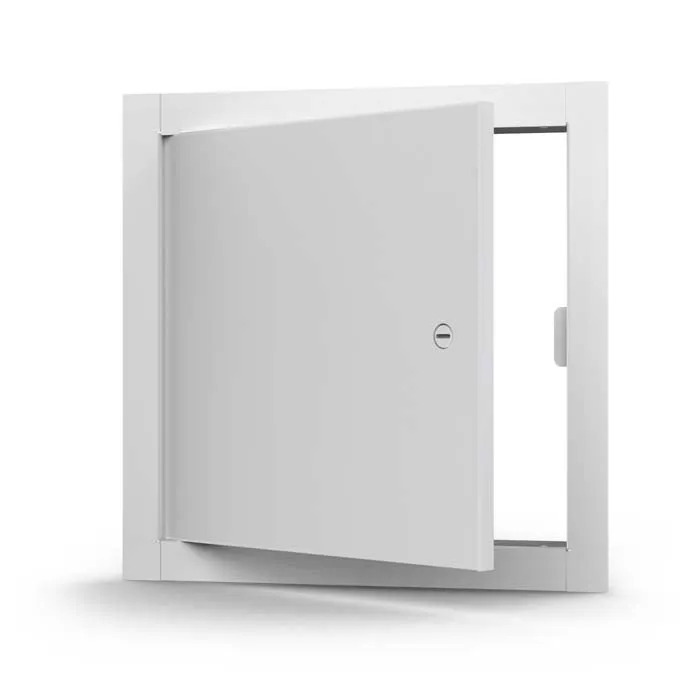

ED-2002 Access Door Specifications

• Material: 18 gauge steel door and frame
• Door: Flush to frame with reinforced edges
• Mounting Frame: 1” wide outside flange with 1 7/16” deep mounting Frame: Knock over mounting tabs provided on 6×6, 8×8, 10×10 and 12×12
• Hinge: Concealed Hinge Pin
• Latch: Stainless steel slot screwdriver operated cam latch
• Finish: 5 Stage iron phosphate preparation with prime coat of White alkyd baking enamel
